Description
Unlock the True Essence of Sound with the sCLK-OCX10 Master Clock Generator
Are you ready to elevate your audio experience to a whole new level? Meet the sCLK-OCX10, the master clock generator that’s about to become the heart of your digital audio setup. With its high purity 10 MHz clock signal, this device is designed for audiophiles who crave the best sound quality. Say goodbye to mediocre audio and hello to a world where every note resonates with clarity and depth!
Why Choose the sCLK-OCX10?
In the realm of digital audio, the clock signal is akin to the conductor of an orchestra, ensuring that every instrument plays in perfect harmony. The sCLK-OCX10 stands out because it doesn’t just produce any clock signal; it delivers a high-purity sine wave that significantly reduces noise compared to traditional square wave signals. This means you get a cleaner, more accurate sound that brings your music to life.
High Purity Clock Signal
Imagine listening to your favorite tracks and hearing details you’ve never noticed before. The sCLK-OCX10’s 10 MHz clock signal is engineered to enhance sound quality, making it a must-have for high-end audio equipment. It connects seamlessly to devices equipped with a BNC connector, synchronizing with the internal clock to elevate your listening experience.
Designed for Audiophiles
Crafted specifically for high-end audio equipment, the sCLK-OCX10 is the ultimate digital device for those who demand nothing but the best. Whether you’re a seasoned audiophile or just starting your journey into high-fidelity sound, this master clock generator will transform your audio setup. It’s compatible with SOtM products like the sMS-1000SQ, sMS-200ultra, and tX-USBultra, making it a versatile addition to your collection.
Pure Analog Sine Wave Output
Unlike conventional clock generators that produce angled square digital signals, the sCLK-OCX10 outputs a pure analog sine wave. This innovative design minimizes noise and distortion, allowing you to experience music as it was meant to be heard. With over a decade of expertise from SOtM, this device is a game-changer in the world of audio.
Delicate and Natural Sound
Throughout all bandwidths, the sCLK-OCX10 delivers a smooth, natural sound that captures the essence of every instrument. Especially in the mid-low frequencies, you’ll notice a significant improvement that rivals the best analog devices. With the sCLK-OCX10, you’re not just hearing music; you’re feeling it in your heart.
Multiple Outputs for Versatility

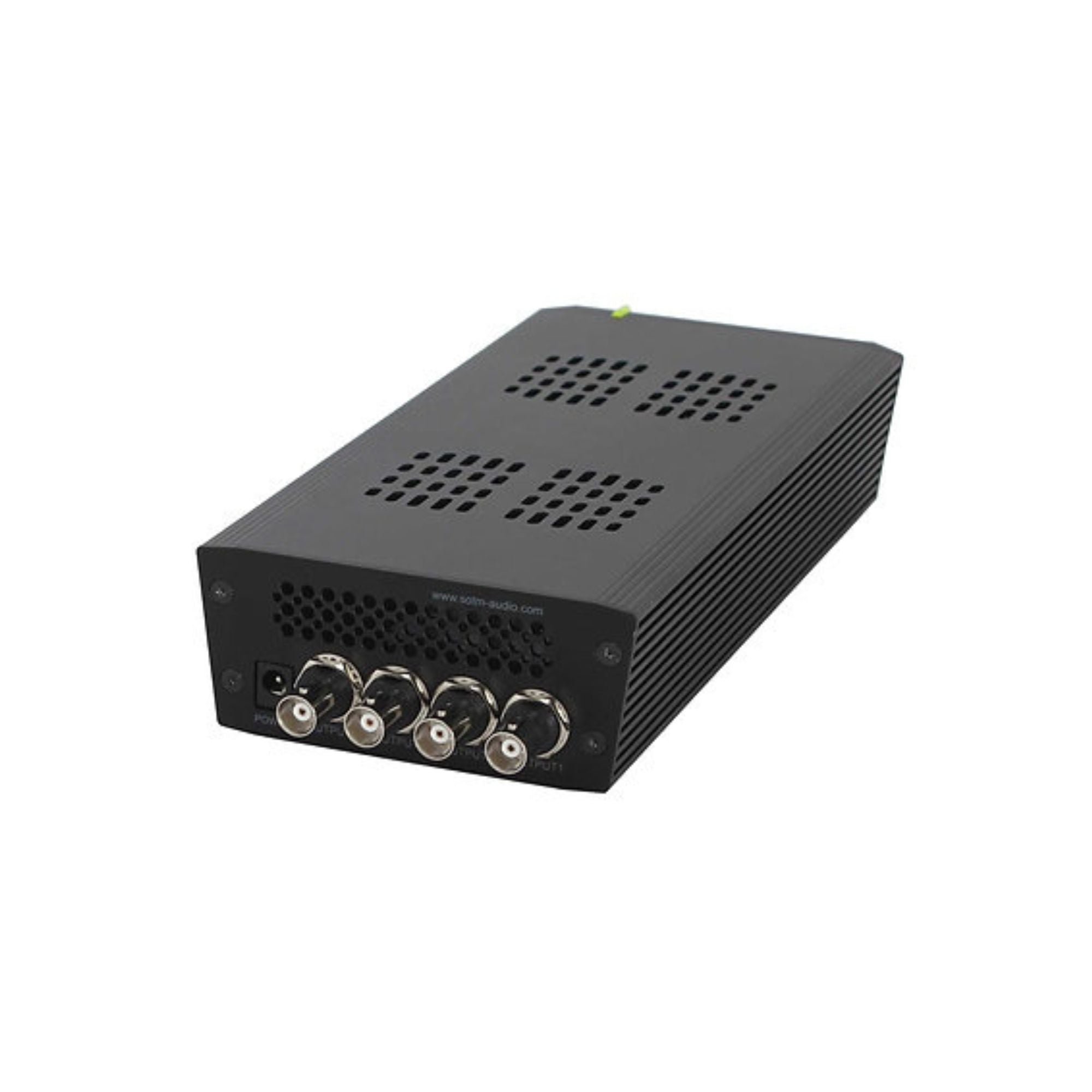

Need flexibility? The sCLK-OCX10 features four outputs, allowing you to connect up to four devices simultaneously. Plus, you can choose between 50 ohms or 75 ohms output impedance, ensuring compatibility with a wide range of audio equipment. This adaptability makes it an essential tool for any serious audio setup.
Technical Specifications
| User Interface | Operating indicator LED x1 |
| Frequency | 10.000MHz sine wave |
| Output Level | 13dBm (2.825Vp-p @ 50?), 2dBm |
| Output Connector | 50? BNC connector x 4 (Optional 75? BNC connector available) |
| Typical Phase Noise (dB/Hz) | 10Hz: -140 > 100Hz: -160 > 1kHz: -165 > 10kHz: -165 > 100kHz: -165 |
| Temperature Stability | (0 to +50C, Ref: 25C) 2E-9 |
| Input Voltage | 12Vdc |
| Input Current | 2A max |
| Operating Temperature | +10 ~ +30C |
| Storage Temperature | 0 ~ +40C |
| Dimensions | 106 x 48 x 245 (mm) |
| Weight | 1.5kg |
Frequently Asked Questions
1. What devices can I use with the sCLK-OCX10?
The sCLK-OCX10 is compatible with any audio device that has a BNC connector for master clock input, including SOtM products like the sMS-1000SQ and sMS-200ultra.
2. How does the sCLK-OCX10 improve sound quality?
By producing a high-purity sine wave clock signal, the sCLK-OCX10 minimizes noise and distortion, resulting in clearer and more accurate sound reproduction.
3. Can I use the sCLK-OCX10 with multiple devices at once?
Absolutely! The sCLK-OCX10 features four outputs, allowing you to connect up to four devices simultaneously for a versatile audio setup.
4. What is the output impedance of the sCLK-OCX10?
The output impedance can be set to either 50 ohms or 75 ohms, providing flexibility for different audio equipment.
5. Where can I purchase the sCLK-OCX10?
You can shop for the sCLK-OCX10 and explore more high-quality audio products at our online store.
Don’t settle for average sound quality. Upgrade to the sCLK-OCX10 and experience music like never before!
